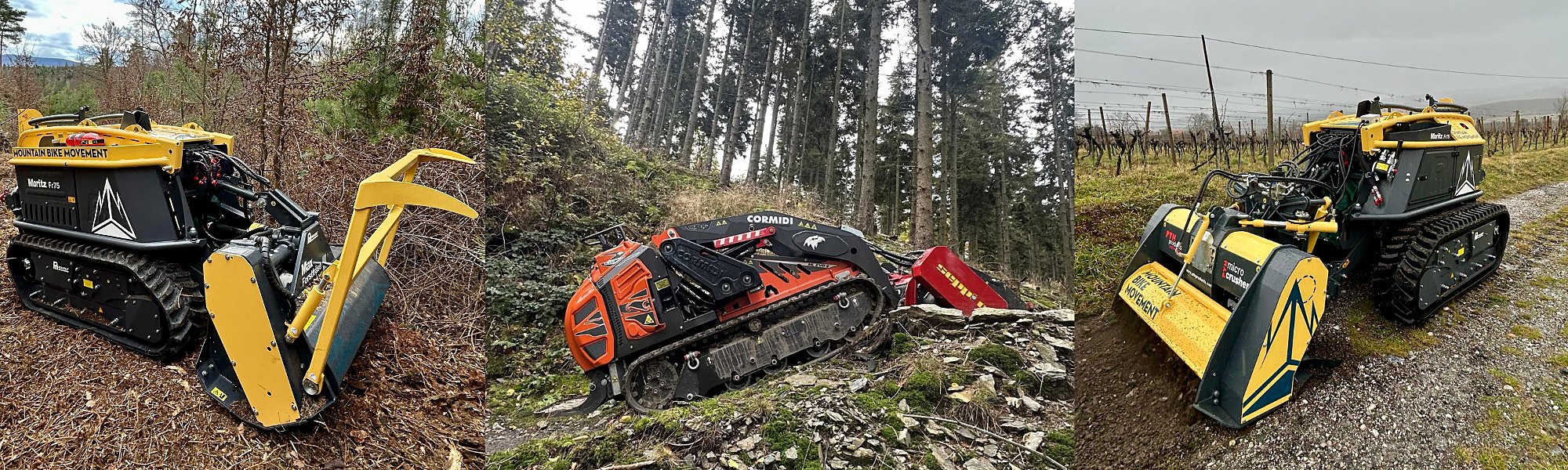

Trail mills and stone crushers by Mountain Bike Movement

Our trail mills and stone crushers

The future of path & trail maintenance

Powerful trail mills and stone crushers – see for yourself! Looking for the perfect tool for trail building and path maintenance? We have the solution – bookable as a service or available to rent.

Our machines

Two systems for every terrain

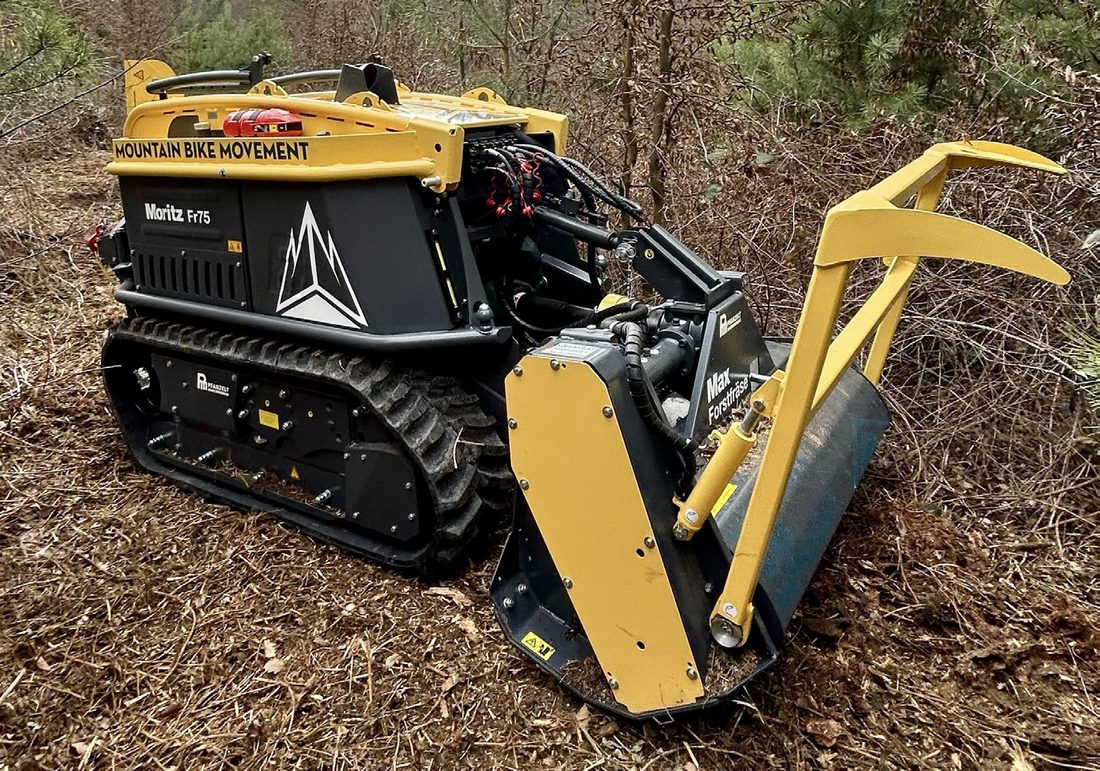

Pfanzelt Moritz FR 75 with Max Forstmulcher and Pth stone crusher
Wide mulcher & mill

Pfanzelt Moritz FR 75 with Max Forstmulcher & Pth stone crusher

The Max Forstmulcher, combined with the Pfanzelt Moritz FR 75, delivers robust shredding of wood and roots up to 20 cm in diameter – ideal for forestry, agriculture and trail-building work.

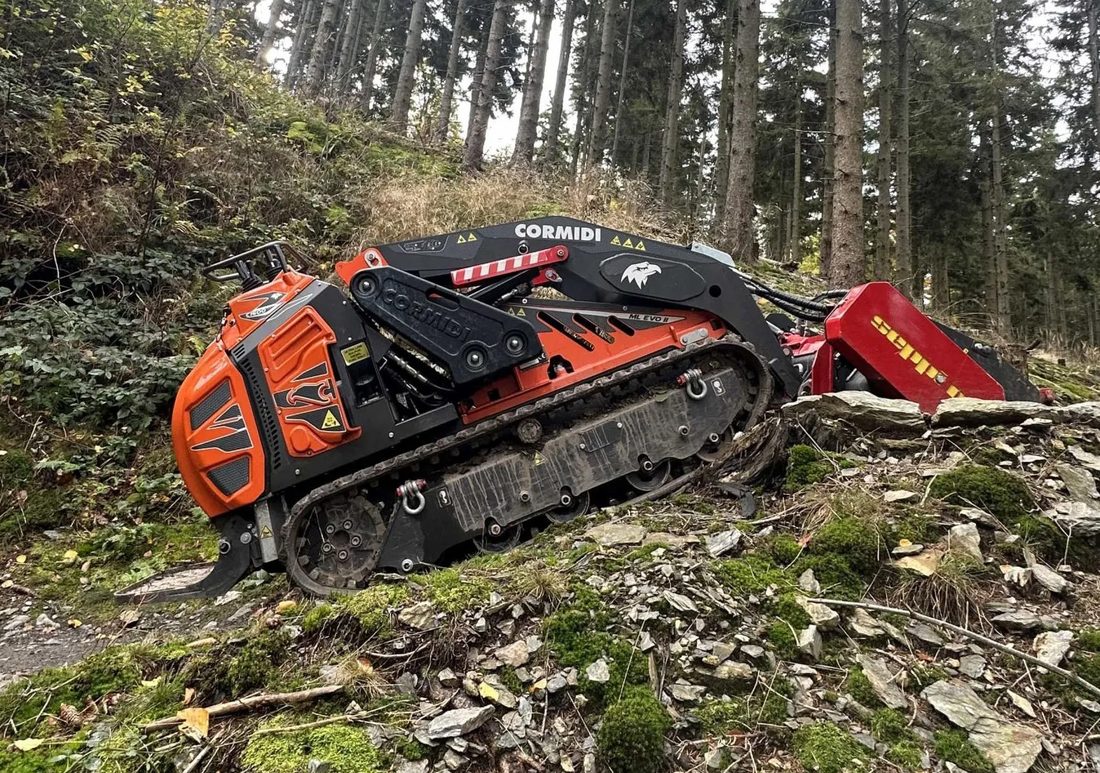

Cormidi C1600 with Seppi-M stone crusher
Narrow mill

Cormidi C1600 with Seppi-M stone crusher

Our narrow trail mill with stone crusher, powered by the C1600 with 26 hp, efficiently shreds material and stones up to 15 cm in diameter – ideal for demanding trail work in tight terrain.

Carrier machine

Pfanzelt Moritz FR 75

The Pfanzelt Moritz FR 75 is a compact, remote-controlled carrier machine for use in difficult terrain. It offers high manoeuvrability and flexibility, making it ideal for work on steep slopes and densely overgrown areas – especially in forestry, but also in landscaping and construction.

Technical data

  • Drive: diesel, low-emission
  • Power: 75 hp
  • Max. gradeability: up to 45° incline
  • Weight: approx. 2,500 kg (without attachment)
  • Working speed: variable depending on attachment

Areas of use

  • Work in rough terrain, e.g. steep embankments or hard-to-reach forest areas
  • Soil preparation after clearing work
  • Maintenance of protective strips in water protection areas or along traffic routes
  • Preparing areas for reforestation

Functions

  • Remote-controlled – precise control and greater safety
  • Versatile thanks to various attachments
  • All-terrain – the track drive masters steep and soft ground

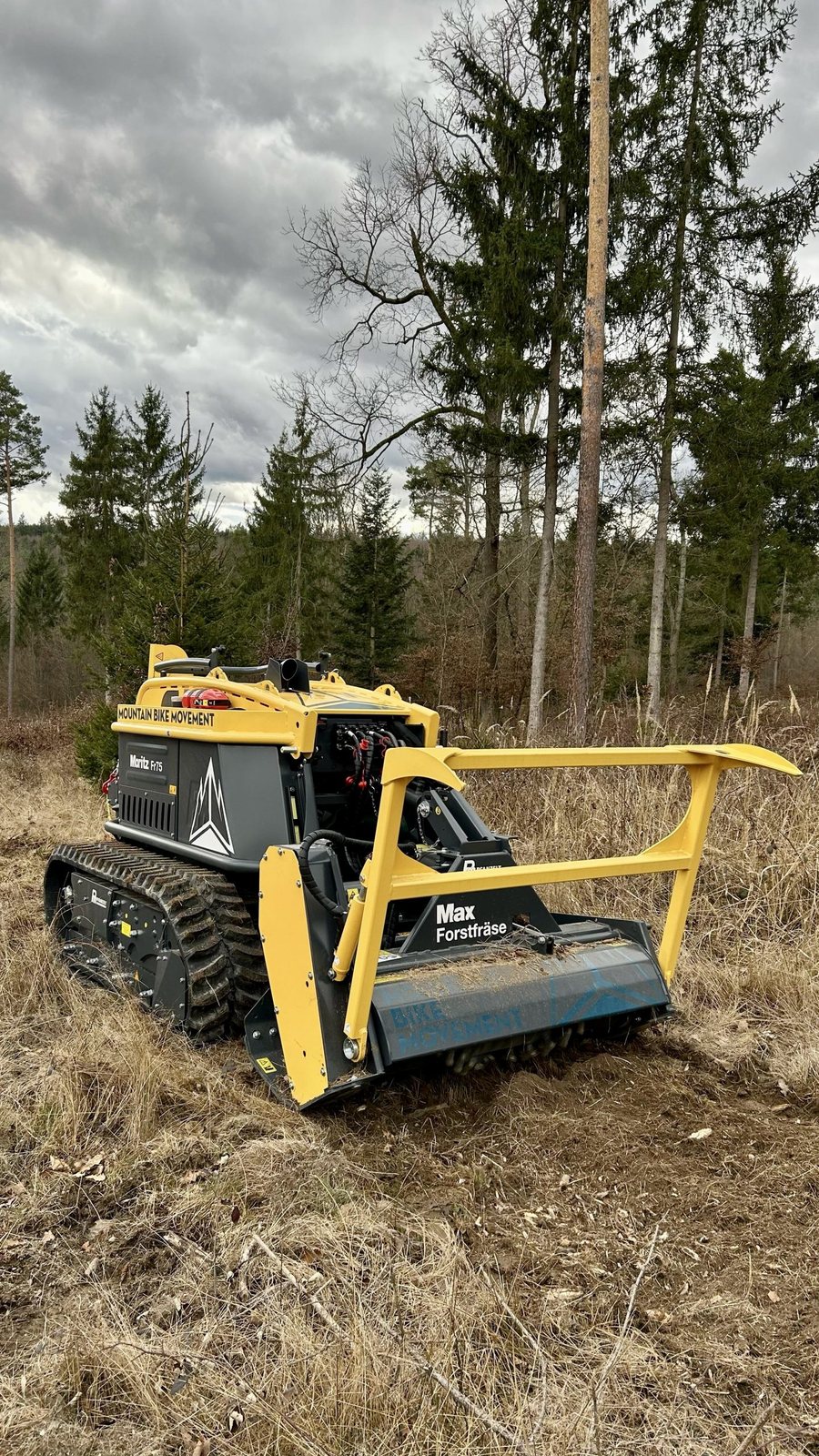

Pfanzelt Moritz FR 75 in action
Attachments

Attachments for the Pfanzelt Moritz FR 75

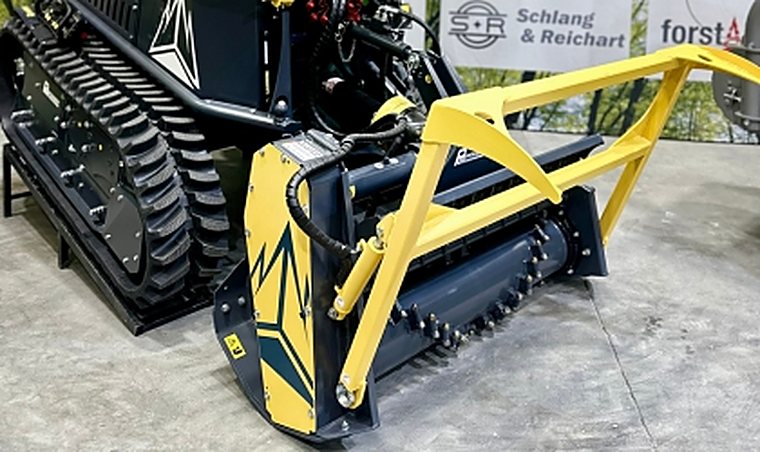

Max Forstmulcher
Attachment

Max Forstmulcher

A powerful mulcher developed specifically to combine with machines like the Moritz FR 75. It is particularly suited to shredding plant material and roots and to preparing soil.

Technical data

  • Working width: approx. 1.2 – 1.5 m
  • Cutting diameter: up to 20 cm
  • Weight: approx. 600 – 800 kg
  • Drive: hydraulic, matched to the Moritz FR 75

Functions

  • High shredding performance up to 20 cm diameter
  • Robust hardened mulching blades
  • Even shredding and mulch distribution

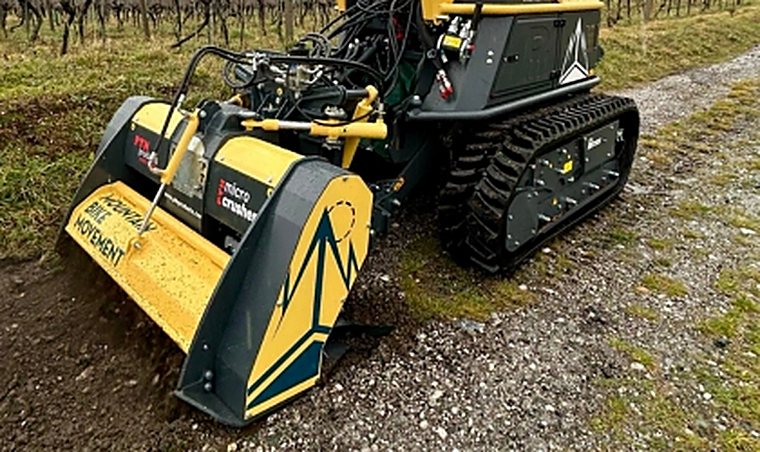

Pth stone crusher
Attachment

Pth stone crusher

A high-performance unit for soil preparation in trail building. It crushes stones and prepares the subsoil for sustainable, stable trails. Its working width in particular enables fast progress.

Technical data

  • Working width: approx. 1.2 – 1.5 m
  • Cutting diameter: up to 30 cm
  • Drive: hydraulic, matched to the Moritz FR 75
  • Construction: hardened blades, powerful rotor system

Functions

  • Stone crushing up to 30 cm deep
  • Soil stabilisation for an even, compacted base
  • High working speed, even in difficult terrain
Trail mill in action
Narrow trail mill

Cormidi C1600 with Seppi-M stone crusher

Our narrow trail mill with stone crusher! With the C1600 carrier and 26 hp, it is the ideal tool to process material, remove brake bumps and break stones. Thanks to an 85 cm working width and 15 cm working depth, it effortlessly crushes stones up to 15 cm in diameter.

At 520 kg and 8 km/h it is especially powerful and fast. Hydraulic control at 260 bar and the track drive make it ideal for use on the trail. MBM – Mountain Bike Movement stands for the highest standards in trail building.

  • Carrier: Cormidi C1600, 26 hp
  • Working width: 85 cm
  • Working depth: 15 cm
  • Stones up to: 15 cm diameter
  • Weight: 520 kg
  • Speed: 8 km/h
  • Hydraulics: 260 bar, track drive
  • Dimensions: 95 cm wide × 215 cm long (without attachment)

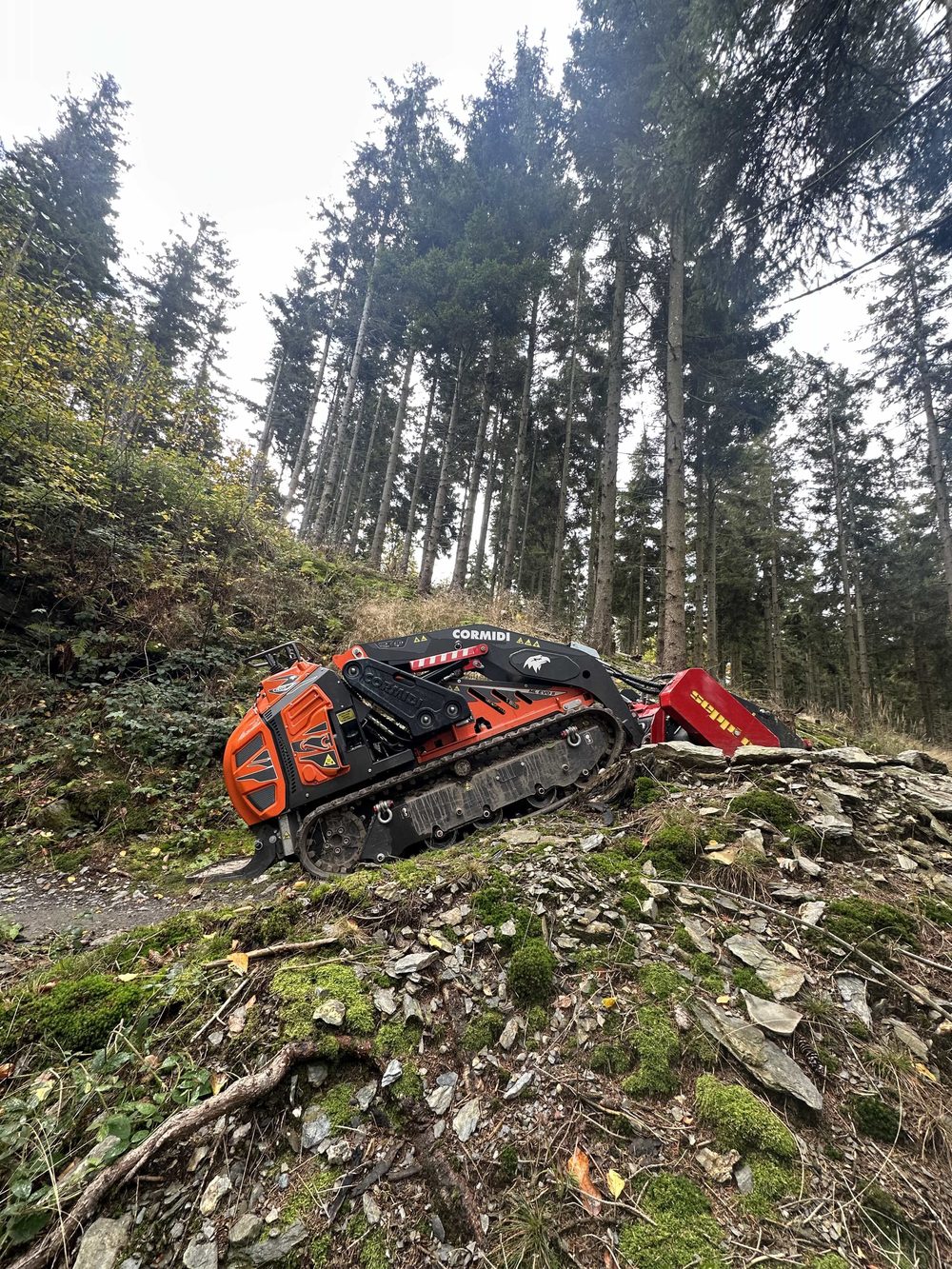

Cormidi C1600 trail mill in action
Perfect precision: trail mill

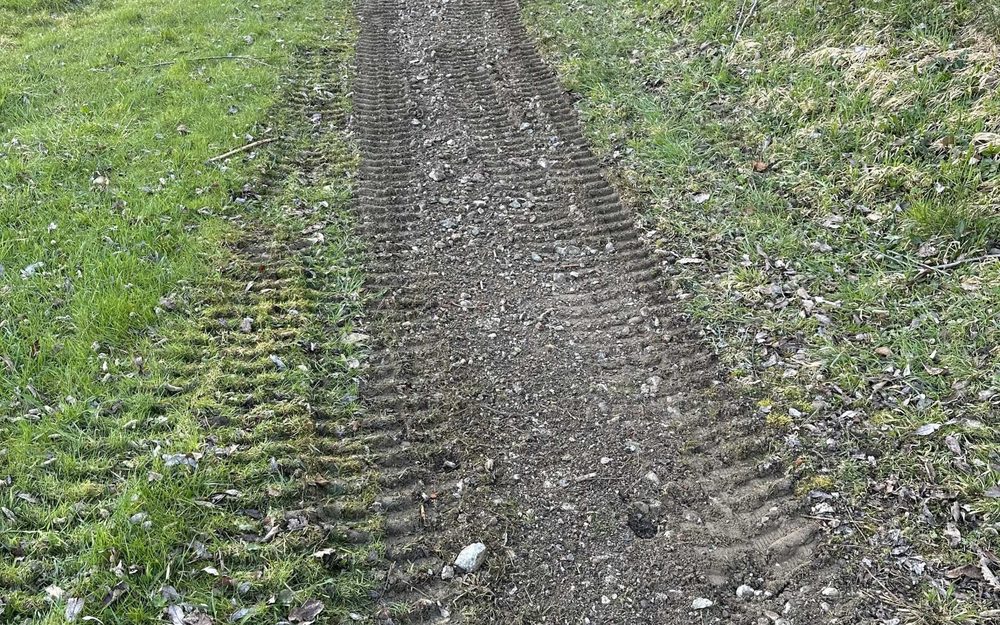

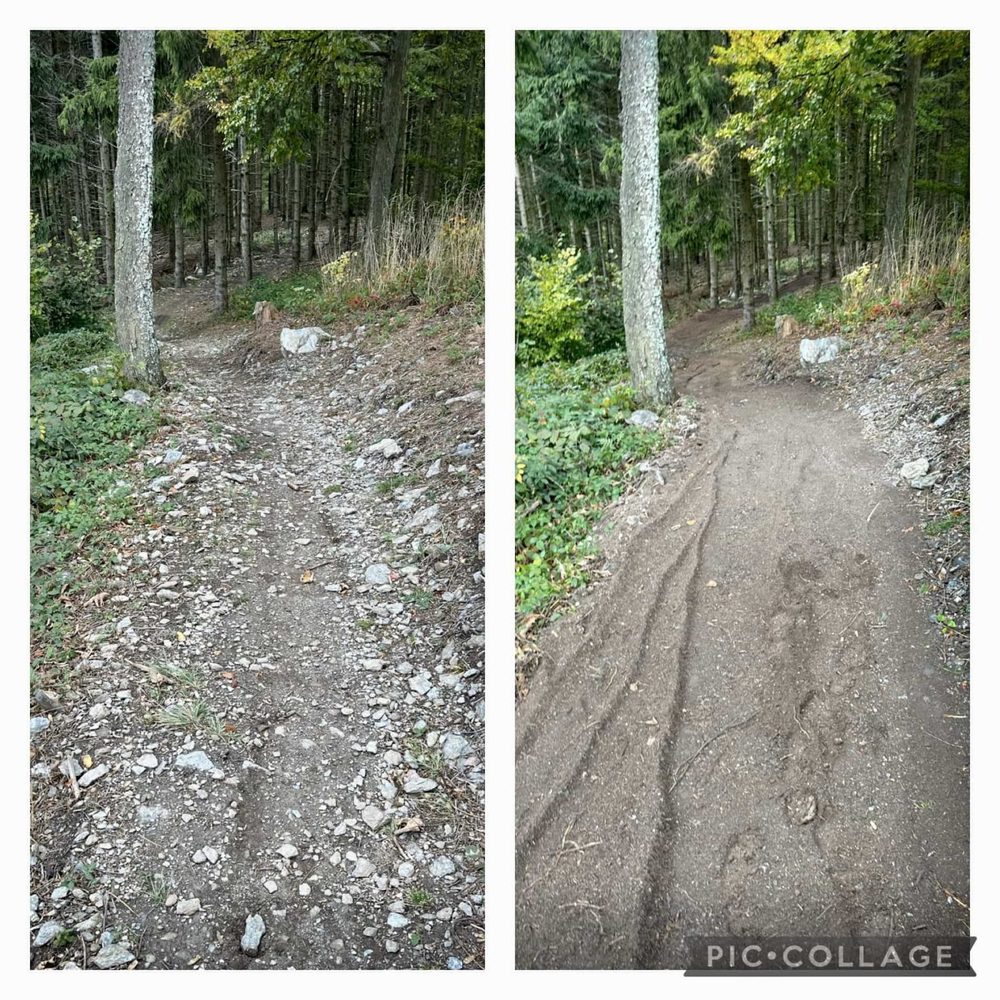

What does the whole thing look like?

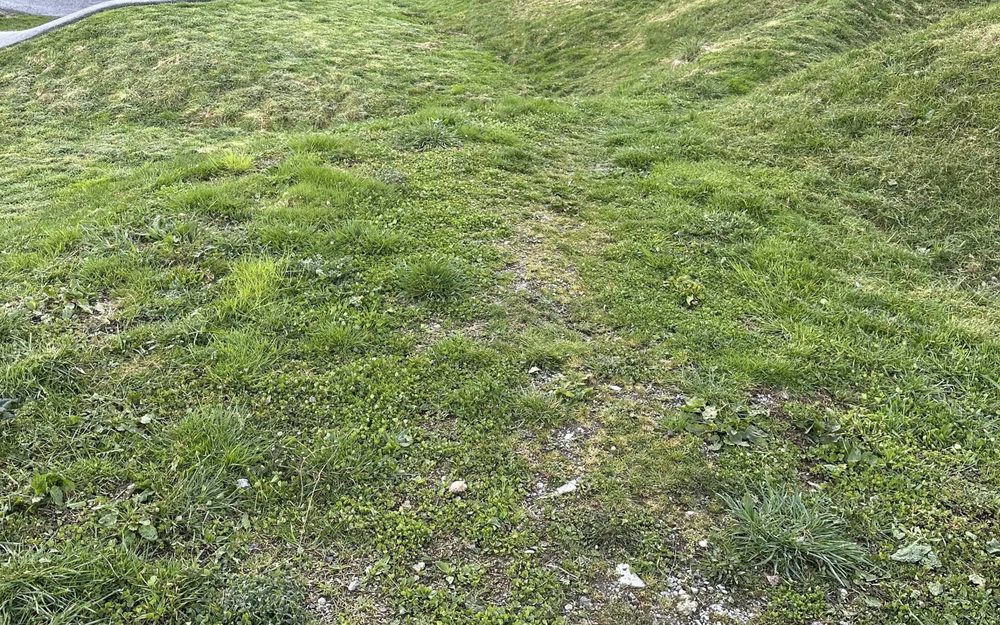

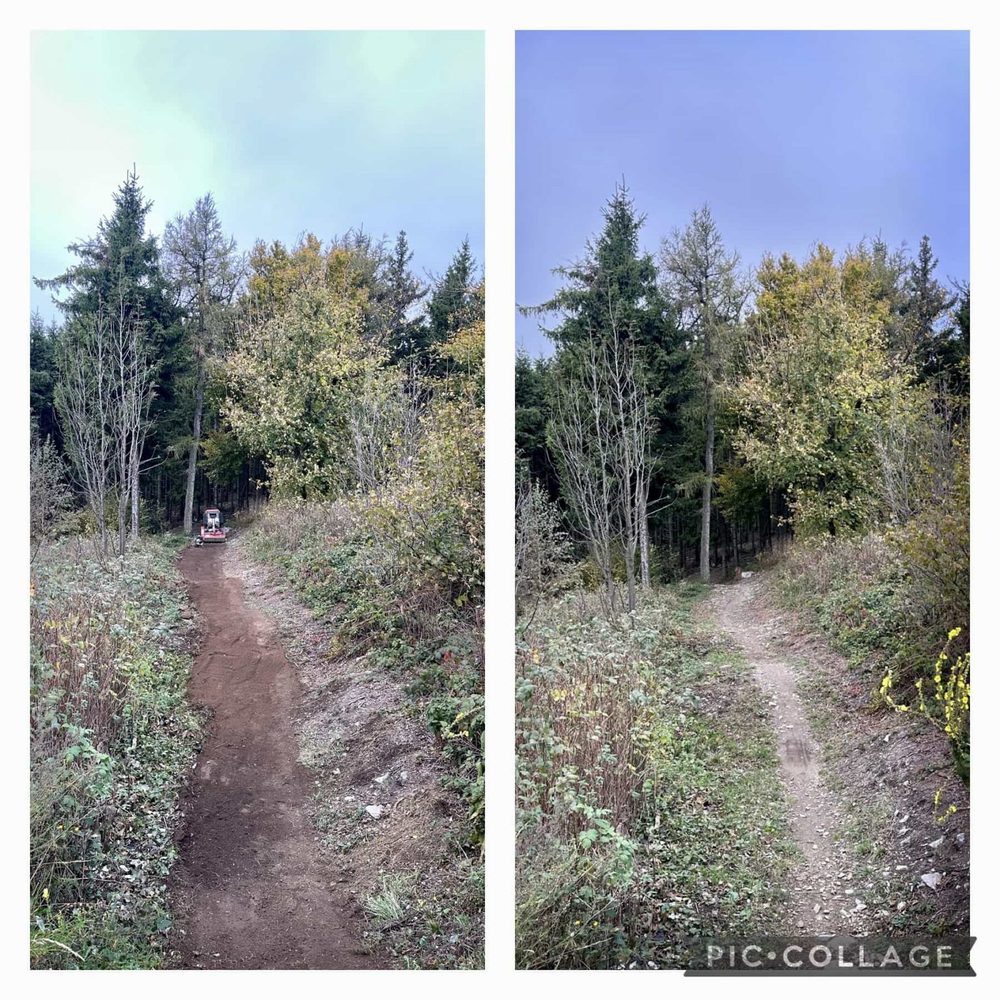

Our powerful trail mill and stone crusher in action – with before/after images.

Interested?

Contact us today and find out about our products and services. We look forward to your enquiry! Would you like to book us for this service or rent the machine? Contact us today at office@mountainbikemovement.com.

FAQ

Frequently asked questions

Can I rent the trail-building milling machine?

Yes – you can book us for the service or rent the machine. Contact us at office@mountainbikemovement.com.

Which machines do you use?

Among others, the remote-controlled Pfanzelt Moritz FR 75 with Max forestry mulcher and Pth stone crusher, plus the narrow Cormidi C1600 with Seppi-M stone crusher.

What are the milling machine and stone crusher used for?

For path and trail building, removing brake bumps, processing material and crushing stone – even on steep, narrow terrain.
